Description

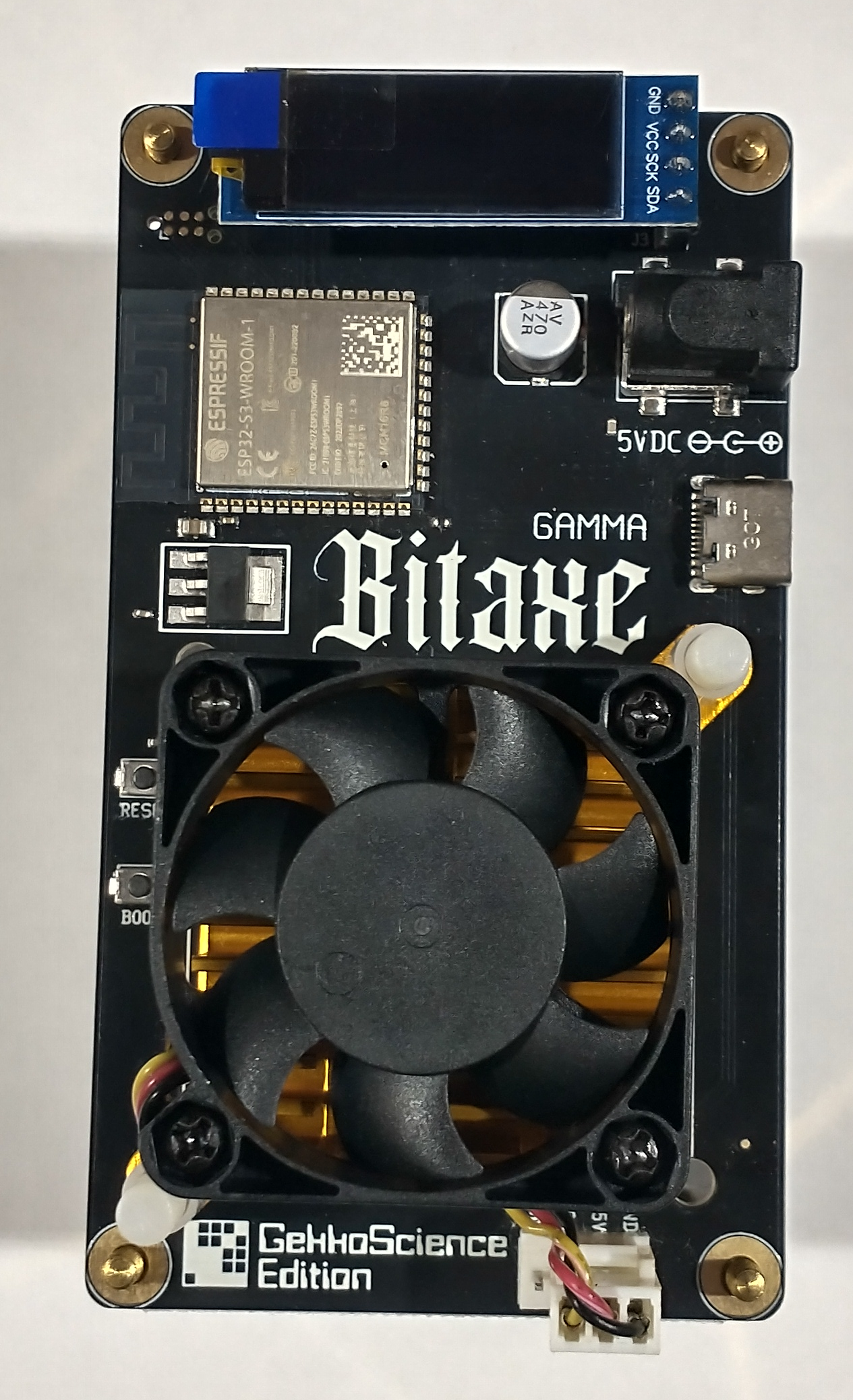

Bitaxe Gamma 601, GekkoScience Edition – S21 BM1370 ASIC

Mechanically compatible with the stock Bitaxe Gamma, but with a custom redesigned circuit and board by GekkoScience

Goals of the redesign:
– Improved electrical efficiency
– Improved regulator accuracy
– Improved stability at high speeds

Integrated wifi, starts mining on power-up
Stats including hashrate, temperature, power use rotate on included OLED screen
Easy web configuration (via wifi SSID/IP displayed on screen) with lots of charts
Requires 5VDC from standard 5.5/2.1mm barrel jack (5V 6A supply recommended)
Ships with the new firmware version 2.3.0
Stock fan supports speeds up to 1.0-1.2TH, 15-25W

Original project developed by OSMU – bitaxe.org
Source files available here
